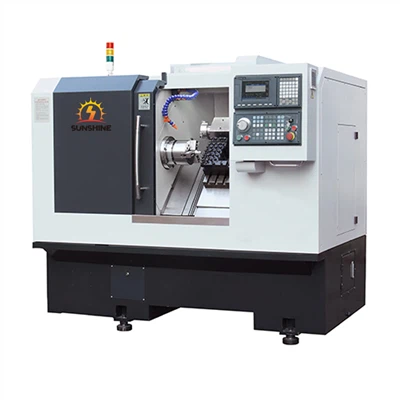

Precision CNC inclined tshuab dhos
CNC drilling tshuab lub hauv paus thiab kem txais qhov tshwj xeeb loj-span qauv tsim los muab qhov chaw ua haujlwm loj dua thiab ua haujlwm ruaj khov dua. Qhov dav ntawm lub hauv paus thiab cov kab yog loj, uas muab qhov chaw ua haujlwm dav dav rau CNC drilling tshuab, thiab tuaj yeem ua cov khoom loj loj, muab cov neeg siv ntau dua thiab kev xaiv.
Cov qauv loj loj ntawm lub hauv paus thiab kem tuaj yeem tsis tsuas yog muab ntau qhov chaw ua haujlwm, tab sis kuj txhim khu kev ruaj ntseg ntawm tag nrho lub tshuab. Qhov kev tsim no tuaj yeem txo qhov kev vibration thiab resonance tshwm sim thiab xyuas kom meej machining raug thiab zoo.
Lub hauv paus thiab kem yog ua los ntawm cov ntaub ntawv muaj zog, uas muaj qhov zoo rigidity thiab stability. Qhov kev tsim no ua rau lub tshuab CNC drilling tuaj yeem tiv taus cov txiav loj thiab kev co, ua kom muaj kev nyab xeeb thiab kev ntseeg siab thaum ua haujlwm.
CNC drilling tshuab txais cov cuab yeej servo lub tsev qiv ntawv hloov cov cuab yeej, uas muaj qhov zoo ntawm kev ruaj ntseg ceev thiab txo lub sij hawm tsis ua haujlwm.
Lub tshuab nqus dej nti tuaj yeem tshem tawm cov khoom pov tseg sai sai ntawm qhov chaw ua haujlwm kom tsis txhob cuam tshuam nrog cov cuab yeej thiab cov khoom ua haujlwm. Nyob rau tib lub sijhawm, qhov zoo tshaj plaws nti tshem tawm lub kaum sab xis yog saws, kom cov chips khib nyiab tuaj yeem ua kom yooj yim tawm ntawm lub tshuab, tsis ua rau muaj kev cuam tshuam los yog txuam nrog. Txhawm rau txo lub sijhawm tsis ua haujlwm, txhim kho kev ua haujlwm zoo, tab sis kuj ua kom muaj kev ruaj ntseg thiab kev ntseeg siab ntawm cov txheej txheem ua.
CNC laum tshuab kuj zoo tagnrho rau drilling me me txoj kab uas hla. CNC drilling tshuab txais kev tswj hwm qib siab thiab cov cuab yeej precision, uas tuaj yeem paub txog kev ua haujlwm siab aperture. Qhov kev tsim no tuaj yeem ua kom ntseeg tau qhov tseeb thiab qhov zoo ntawm qhov drilling thiab ua tau raws li qhov xav tau ntawm qhov me me aperture.
| Qauv | TXK 50 | TXK 50 P | TXC 50D |
| Qhov siab tshaj plaws txoj kab uas hla ntawm txaj (mm) | 500 | 500 | 500 |
| Qhov siab tshaj plaws txiav ntev (mm) | 500 | 500 | 500 |
| Qhov siab tshaj plaws txiav txoj kab uas hla (mm) | 360 | 500 | 180 |
| Spindle kawg daim ntawv thiab code | A2-6 | A2-6 | A2-6 |
| Spindle qhov taub (mm) | 65 | 65 | 65 |
| Spindle ceev ntau yam | 50-4500/177 | 50-4500/177 | 50-4500 |
| X-axis taug kev (mm) | 200 | 280 | 200 |
| Z-axis taug kev (mm) | 550 | 550 | 550 |
| Tailstock mus ncig teb chaws (mm) | 450 | 450 | 450 |
| Spindle ceev series (r / min) | - | - | Infinitely variable kis tau tus mob |
| X / Z nrawm nrawm (m / min) | 30/30 | 30/30 | 30/30 |
| Tshuab hnyav (Kg) | 3600 | 3600 | 3800 |
| Qauv | TXC 50 G | TCK56-500 | TCK56-1000 | TCK63-1500 |
| Qhov siab tshaj plaws txoj kab uas hla ntawm txaj (mm) | 500 | 560 | 560 | 720 |
| Qhov siab tshaj plaws txiav ntev (mm) | 500 | 500 | 1000 | 1500 |
| Qhov siab tshaj plaws txiav txoj kab uas hla (mm) | 360 | 350 | 350 | 620 |
| Spindle kawg daim ntawv thiab code | A2-6 | A2-6 | A2-6 | A2-8 |
| Spindle qhov taub (mm) | 65 | 65 | 65 | 80 |
| Spindle ceev ntau yam | 50-4500/143 | 50-4500/177 | 50-4500/177 | 50-3500/145 |
| X-axis taug kev (mm) | 200 | 200 | 200 | 420 |
| Z-axis taug kev (mm) | 550 | 560 | 1050 | 1550 |
| Tailstock mus ncig teb chaws (mm) | 450 | 450 | 900 | 1650 |
| Spindle ceev series (r / min) | - | - | - | - |
| X / Z nrawm nrawm (m / min) | 30/30 | 30/30 | 30/30 | 12/16 |
| Tshuab hnyav (Kg) | 3600 | 3600 | 4500 | 5000 |
