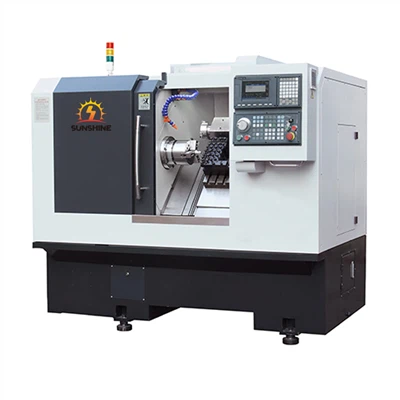

45 Degree Tilt txaj CNC tshuab cuab yeej nti tshem tawm yog yooj yim rau CNC Inclined tig
Khoom Description
Lub txaj ntawm CNC inclined tshuab dhos yog tilted ntawm 45 degrees, uas tuaj yeem ua rau lub viav vias lub kaum sab xis ntawm lub cuab yeej thiab txhim kho kev ua haujlwm raug ntawm lub workpiece. Kev ua haujlwm raug ntawm inclined rail CNC tshuab dhos tuaj yeem ncav cuag 0.005mm, uas yog qhov kev txiav txim siab siab dua li ntawm cov tshuab dhos tsoos, thiab tuaj yeem ua tau raws li qhov xav tau ntawm kev ua haujlwm siab. Kev ua haujlwm ntawm qhov siab sib txawv tuaj yeem ua tiav los ntawm kev kho qhov siab ntawm lub cuab yeej, thiab cov khoom ua haujlwm ntawm qhov loj thiab cov duab tuaj yeem ua tiav. Nws muaj kev ua haujlwm loj dua li cov tshuab lathes.
Qhov ntse CNC system ntawm inclined rail CNC tshuab dhos tuaj yeem ua tiav thiab ua tiav cov haujlwm ua tiav raws li qhov programmed program, txo cov neeg cuam tshuam hauv kev ua haujlwm. Nyob rau tib lub sijhawm, thaum lub sijhawm ua haujlwm, vim tias qhov kev ua tiav ntau dua, qhov kev ua haujlwm tsis ua haujlwm tuaj yeem txo qis, uas tseem muaj txiaj ntsig zoo hauv kev txuag cov ntaub ntawv thiab cov nqi.
| Specification | chav tsev | TSI 4550 | TCK4556-500 | TCK4556-1000 | TCK4572-1500 |
| Hla lub txaj | mm | 500 | 560 | 560 | 720 |
| Max machining ntev | mm | 360 | 350 | 350 | 620 |
| Swing hla swb | mm | 500 | 500 | 1000 | 1500 |
| Spindle lub cev muaj zog | KW | 11-15 | 11-15 | 30-37 | 30-37 |
| Txoj kab uas hla ntawm spindle los ntawm qhov | mm | 65 | 65 | 65 | 80 |
| Max spindle ceev | rpm ua | 50-4500/177 | 50-4500/177 | 50-4500/177 | 50-3500/145 |
| Lub kaum sab xis | deg | 45 | 45 | 45 | 45 |
| Hydraulic chuck | - | 8"/10" | 8"/10" | 15"/18"/21" | 15"/18"/21" |
| X-axis taug kev | Kw | 200 | 200 | 200 | 420 |
| Z-axis taug kev | mm | 550 | 560 | 1050 | 1550 |
| Tailstock lub tes tsho txoj kab uas hla / mus ncig | mm | 450 | 450 | 900 | 1650 |
| Lub tes tsho taper | MT | 5 | 5 | 6 | 6 |
| X / Z nrawm nrawm | m/min | 30/30 | 30/30 | 30/30 | 12/16 |
| Tag nrho qhov ntev | mm | 2300*1600*1800 | 2300*1600*1800 | 5000*2400*2800 | 6000*2400*2800 |
| Tshuab hnyav (kwv yees) | Kg | 3600 | 3600 | 4500 | 5000 |
