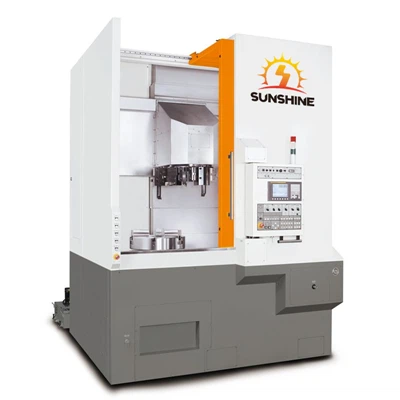

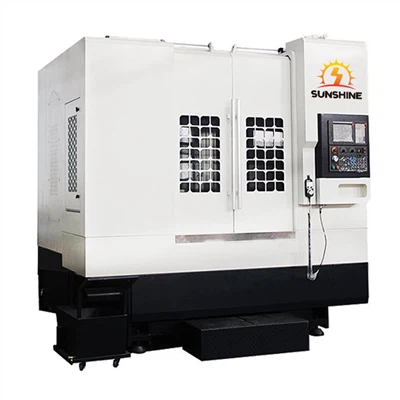

Log Hub Clutch Housing Vertical CNC Tshuab dhos
Vertical CNC lathes rau kev ua cov khoom xws li log hubs thiab clutch vaj tse. Vertical CNC lathes siv cov cuab yeej CNC siab heev thiab cov cuab yeej ua haujlwm siab kom ua tiav kev ua haujlwm tau zoo thiab raug.
Lub spindle ib feem ntawm ntsug CNC tshuab dhos yog tsav los ntawm lub zog muaj zog lub cev muaj zog nrog kev ua haujlwm siab tshaj plaws. Nyob rau tib lub sijhawm, cov cuab yeej txiav sib txawv tuaj yeem raug xaiv raws li kev ua haujlwm sib txawv kom tau raws li cov kev xav tau ntawm cov txheej txheem nyuaj.
Vertical CNC lathes yog ua los ntawm cam khwb cia hlau lub cev khoom, uas muaj qhov zoo ntawm cov qauv ruaj khov thiab zoo rigidity. Nyob rau tib lub sijhawm, ntsug CNC lathes kuj tau nruab nrog cov khoom siv high-precision linear thiab precision pob screws los xyuas kom meej kev ua tiav, rov ua qhov tseeb thiab ua tiav.
Tsis tas li ntawd, lub tshuab dhos tseem tau nruab nrog lub tshuab CNC siab heev, uas tuaj yeem tswj tau ntau yam kev ua haujlwm ntawm lub tshuab dhos los ntawm kev ua haujlwm kom ua tiav kev ua haujlwm, uas tuaj yeem txhim kho kev tsim khoom thiab kev ua haujlwm zoo.
| Specification | chav tsev | VTC 50 | VTC 60 | VTC 70 | VTC80A | VTC100A | |
| Mob stroke | X axis | mm | 500 | 425 | 700 | 670 | 850 |
| Z axis | mm | 0-500 | 90-690 | 0-850 | 170-1020 | 0-1000 | |
| Kev muaj peev xwm ua tau | Qhov siab tshaj plaws kev sib hloov txoj kab uas hla | mm | φ650 | φ650 | φ800 | φ1000 | φ1200 |
| Qhov siab tshaj txoj kab uas hla | mm | φ500 | φ600 | φ700 | φ800 | φ1000 | |
| Qhov siab kawg tig | mm | 500 | 600 | 850 | 850 | 1000 | |
| Spindle | Spindle ceev | rpm ua | 100-1000 | 100-1000 | 100-800 | 100-800 | 100-800 |
| Spindle lub cev muaj zog | Kw | 15 | 18.5 | 22 | 22 | 22 | |
| Spindle txoj kab uas hla | mm | φ130 | φ160 | φ160 | φ180 | φ200 | |
| Hydraulic chuck + cuab yeej Turret | Chuck qauv | Hydraulic chuck | |||||
| txoj kab uas hla | nti | 15" | 18" | 21" | 24" | 32" | |
| Turret chaw nres tsheb | Plaub qhov chaw ua haujlwm / yim lub chaw ua haujlwm |
Plaub qhov chaw ua haujlwm / yim lub chaw ua haujlwm |
Plaub qhov chaw ua haujlwm / yim lub chaw ua haujlwm |
Plaub qhov chaw ua haujlwm / yim lub chaw ua haujlwm 4工位/8公位 |
Plaub qhov chaw ua haujlwm / yim lub chaw ua haujlwm 4工位/8公位 |
||
| qhia | X-axis dov linear phau ntawv qhia | 2 pcs, dav 45mm | 2 pcs, dav 45mm | 2 pcs, dav 45mm | 2 pcs, dav 45mm | 2 pcs, dav 55mm | |
| Z axis dov linear phau ntawv qhia | 2 pcs, dav 45mm | 2 pcs, dav 45mm | 2 pcs, dav 55mm | 2 pcs, dav 55mm | 2 pcs, dav 55mm | ||
| CNC system | Txheem configuration | GSK | GSK | GSK | GSK | GSK | |
| Txias qhov system | cua txias lub cev muaj zog | W | 450+750 | 450+750 | 750+1.2kw | 750+1.2kw | 750+1.2kw |
| Tso zis tso zis | m³/h | 4m³/h | 4m³/h | 4m³/h | 4m³/h | 4m³/h | |
| Qhov tseeb | Rov ua dua | mm | ±0.003 | ±0.003 | ±0.003 | ±0.005 | ±0.005 |
| positioning raug | mm | ±0.06 | ±0.06 | ±0.06 | ±0.08 | ±0.08 | |
| qhov chaw me me tshaj plaws | mm | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
| Qhov hnyav thiab qhov ntev | Dimensions (kwv yees) | mm | 2100 × 2500 × 2750mm | 2200 × 2050 × 2910mm | 2400 × 2100 × 3200mm | 2400 × 2100 × 3600 hli | 3100 × 2650 × 3700 hli |
| Qhov hnyav tag nrho (kwv yees) | Kg | 5500 | 7500 | 8000 | 9000 | 13500 | |
Siv tau machining qhov chaw
Tsheb log hub, nres nruas, flywheel vaj tse, clutch vaj tse, siab phaj, ntug, sib txawv vaj tse, disc thiab lwm yam.
1. Engineering machinery kev lag luam
CNC ntsug lathes tuaj yeem ua cov khoom loj thiab complex engineering machinery qhov chaw.
2. Tub rog kev lag luam
Hauv kev lag luam tub rog, CNC ntsug tshuab dhos feem ntau yog siv los tsim cov riam phom precision.
3. Shipbuilding kev lag luam
CNC ntsug lathes tuaj yeem ua tau zoo thiab ua kom tiav cov txheej txheem ntawm cov khoom tseem ceeb xws li cov qauv ntawm lub nkoj thiab cov kiv cua.
4. Kev lag luam tsheb
Nws tuaj yeem ua cov khoom ua haujlwm siab xws li tsheb cav qhov chaw, chassis qhov chaw, thiab qhov chaw gearbox. Nws kuj tseem tsim nyog rau kev ua cov tsheb nres discs, nres nruas, aluminium alloy log thiab lwm yam.
5. Aerospace teb
CNC ntsug lathes tuaj yeem siv los ua cov khoom siv dav hlau, xws li turbine hniav.
Qhia kom meej
CNC system
Chuck
Servo turret
High rigidity qauv
Peb qhov zoo dua
Micron-level processing technology
Ua tiav kev ywj pheej
core assembly self-tsim technology
Phau ntawv scraping
Qhov chaw ruaj khov ntawm cov kabmob thiab cov ntxaiv
yog manually scraped
Central dej qhov hluav taws xob system
Optional central dej qhov hluav taws xob system
Kev Tshawb Nrhiav Laser
Txo qhov ua yuam kev thiab ua tiav qhov chaw raug siab dua
