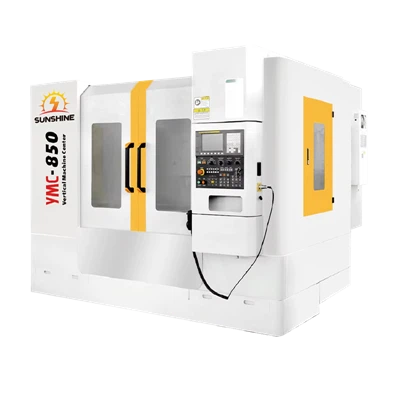

High-speed thiab high-efficiency machining chaw
Peb lub chaw machining yog qhov ua tau zoo, kev kub ceev, siab precision tshuab cuab yeej nrog kev ua haujlwm zoo thiab ruaj khov. Nws txais kev siv tshuab CNC siab heev, muaj cov yam ntxwv ntawm kev pub noj ceev thiab kev ua haujlwm siab, thiab tsim nyog rau ntau yam kev sib tsoo, milling, drilling thiab lwm yam txheej txheem.
Lub chaw machining no muaj qhov tshwj xeeb zoo hauv cov cuab yeej siv tshuab, kev sib kis, kev tswj xyuas, thiab lwm yam, ua kom nws ua tiav kev ua haujlwm siab, siab-precision, thiab kev ua haujlwm siab. Lub ntxaiv ntawm lub tshuab cuab yeej siv lub tshuab hluav taws xob ceev ceev. Nws qhov kev sib hloov ceev ceev ua rau lub chaw machining kom ua tiav kev txiav ceev, yog li txhim kho kev ua haujlwm zoo.
Nyob rau hauv tas li ntawd, lub machining chaw yog nruab nrog ib tug siab heev CNC system, uas muaj cov yam ntxwv ntawm high degree ntawm automation thiab yooj yim thiab yooj yim ua hauj lwm, cia nws zoo dua hloov mus rau ntau yam complex kev xav tau kev pab. Tsis tas li ntawd, peb lub chaw machining tseem muaj cov khoom noj ceev ceev thiab lub zog txav ceev, uas ua rau cov pwm hloov lub sij hawm ntawm cov tshuab, yog li txhim kho kev tsim khoom.
Nyob rau hauv luv luv, peb machining chaw muaj qhov zoo ntawm high-ceev pub thiab siab khiav hauj lwm efficiency. Nws yog tsim rau ntau yam precision sib tsoo, milling, drilling thiab lwm yam txheej txheem, thiab yog koj xaiv zoo tshaj plaws rau kev ua tau zoo.
| Specifications | chav tsev | VWM 650 | VWM 850 | VWM 855 | VMC1050 | VWM 1160 | VWM 1370 | VWM 1580 |
| Rooj loj 工作台尺寸 |
mm | 900x400 | 1000X500 | 1000x550 | 1000x530 | 1200x600 | 1500x700 | 1700x800 |
| Table siab tshaj load 工作台最大承重 |
kg | 350 | 500 | 500 | 600 | 1000 | 900 | 1500 |
| X / Y / Z axis taug kev X/Y/Z轴坐标行程 |
mm | 650x400x500 | 800x500x500 | 800x550x550 | 1000x500x600 | 1100x600x600 | 1300x700x700 | 1500x800x700 |
| Kev ncua deb ntawm spindle center thiab kem 主轴中心线至立柱正面导轨距离 |
mm | 476 | 552 | 590 | 580 | 650 | 752 | 871 |
| Kev ncua deb ntawm spindle endface thiab worktable nto 主轴端面至工作台上平面距离 |
mm | 100-600 | 120-670 | 120-670 | 140-740 | 120-720 | 150-850 | 150-900 |
| X/Y/Z Max. pub ceev X/Y/Z最大进给速度 |
hli/min | 10000 | 10000 | 10000 | 10000 | 10000 | 8000 | 10000 |
| X/Y/Z Max. Kev nrawm nrawm X/Y/Z最大快移速度 |
m/min | 32/32/30 | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 | 20/20/15 | 20/20/16 |
| spindle ceev 主轴转速 |
r / min | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| spindle taper 主轴锥孔 |
hom | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 |
| Spindle lub cev muaj zog 主轴电机功率 |
kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18 |
| X / Y / Z axis servo lub cev muaj zog X/Y/Z轴伺服电机功率 |
kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 4/4/5 | 4/4/5 | 4.5/4.5/4.5 |
| X / Y / Z lub cev muaj zog txuas X/Y/Z电机连接方式 |
Ncaj nraim 直联 |
Ncaj nraim 直联 |
Ncaj nraim 直联 |
Ncaj nraim 直联 |
Ncaj nraim 直接 |
Ncaj nraim 直接 |
Ncaj nraim 直接 |
|
| X/Y/Z Guide way type X/Y/Z导轨类型 |
Kab rail 线轨 |
Kab rail 线轨 |
Kab rail 线轨 |
Kab rail 线轨 |
peb kab 3线 |
Ob kab thiab ib txoj kab nyuaj 2线一硬 |
Ob kab thiab ib txoj kab nyuaj 2线一硬 |
|
| T qhov 工作台T型槽 |
mm | 3-18x125 | 5-18x90 | 5-18x90 | 5-18x90 | 5-18x100 | 5-18x145 | 5-22x145 |
| Rov ua dua qhov tseeb 重复定位精度 |
mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 | ±0.005 |
| Cov cuab yeej magazine 刀库形式 |
Lub kaus mom hom / disc hom 斗笠式/圆盘式 |
Lub kaus mom hom / disc hom 斗笠式/圆盘式 |
hom disc 圆盘式 |
hom disc 圆盘式 |
hom disc 圆盘式 |
hom disc 圆盘式 |
hom disc 圆盘式 |
|
| Tool muaj peev xwm 刀库容量 |
16T/16T | 24T | 24T | 24T | 24T | 24T | 24T | |
| Qhov siab tshaj qhov ntsuas qhov hnyav 最大刀具重量 |
kg | 7 | 8 | 8 | 8 | 8 | 8 | 15 |
| Max. cuab tam ntev 最大刀具长度 |
mm | 250/300 | 250/300 | 300 | 250/300 | 300 | 300 | 300 |
| Hluav taws xob muaj peev xwm 电气总容量 |
kVA ua | 10 | 15 | 15 | 15 | 18 | 22 | 30 |
| Tshuab dimension (LxWxH) 机床尺寸(长x宽x高) |
mm | 2300x2000x2300 | 2600x2380x2700 | 2600x2380x2700 | 3200x2420x2400 | 3100x2490x2380 | 3600x3000x2700 | 4260x3545x3200 |
| Net. hnyav (kwv yees) 机床重量(约) |
kg | 4500 | 5000 | 5000 | 6000 | 7000 | 11000 | 12000 |
