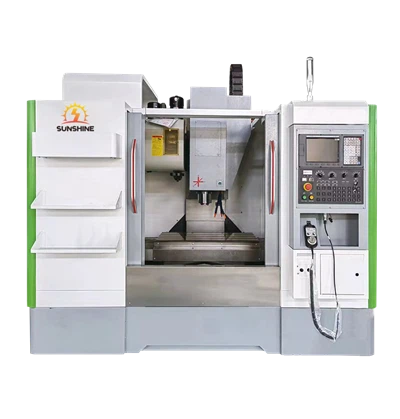

High Rigidity Thiab ruaj khov ua Vertical Machining Center
High rigidity thiab ruaj khov ua ntsug machining chaw
Vertical machining center muaj cov cuab yeej ua haujlwm siab. Lub ntsug spindle ua rau lub cuab yeej ruaj khov thaum lub sij hawm machining, txo cov cuab yeej vibration thiab cov khoom yuam kev los ntawm kev txiav quab yuam. Lub ntsug machining chaw yog nruab nrog advanced CNC tswj systems thiab precision nrhiav kom tau cov cuab yeej, uas muaj peev xwm ua kom tiav qhov chaw thiab high-ceev txiav workpieces kom tau raws li cov kev xav tau ntawm high-precision machining.
Vertical machining center muaj cov cuab yeej ua haujlwm siab. Nws siv cov cuab yeej CNC siab heev kom ua tiav qhov chaw ua haujlwm sai thiab tsis siv neeg hloov pauv, uas txhim kho kev ua haujlwm zoo.
Lub chaw ntsug machining tuaj yeem paub txog kev sib txuas ntawm ntau qhov sib txuas machining, thiab tuaj yeem ua tiav ntau yam txheej txheem ntawm ib zaug, ntxiv kev txhim kho machining efficiency.
Khoom Parameters
| Tshuab qauv | VWM 650 | VWM 840 | VWM 850 | VWM 855 | wb 966 | |
| Workbench loj (mm) | 1000X400 | 1000X400 | 1000X500 | 1000X550 | 1100X550 | |
| Maximum tso cai load (Kg) | 400 | 300 | 500 | 500 | 600 | |
| X-axis taug kev (mm) | 650 | 800 | 800 | 800 | 900 | |
| Y-axis taug kev (mm) | 400 | 400 | 500 | 550 | 600 | |
| Z-axis taug kev (mm) | 550 | 550 | 500 | 550 | 600 | |
| T-qhov | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 | 5-18-100 | |
| Qhov deb ntawm spindle center rau Z-axis qhia nto (mm) | 485 | 445 | 552 | 590 | 663 | |
| Qhov deb ntawm spindle kawg lub ntsej muag rau worktable nto (mm) | 100-650 | 100-650 | 110-610 | 120-670 | 100-700 | |
| Spindle taper qhov | BT 40-120 | BT 40-120 | BT 40-140 | BT 40-150 | BT 40-150 | |
| Spindle ceev (r / min) | 8000 | 8000 | 8000 | 8000 | 8000 | |
| X / Y / Z nrawm nrawm (m / min) | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 | 48/48/48 | |
| Tshuab hnyav (Kg) | 3800 | 3200 | 5300 | 5500 | 5600 | |
| Tshuab qauv | VMC1050 | VWM 1160 | VWM 1165 | VWM 1265 | VWM 1370 | VWM 1580 |
| Workbench loj (mm) | 1200X420 | 1200X600 | 1200X600 | 1200X600 | 1400X700 | 1700X800 |
| Maximum tso cai load (Kg) | 500 | 800 | 800 | 800 | 800 | 1500 |
| X-axis taug kev (mm) | 1000 | 1100 | 1100 | 1200 | 1300 | 1500 |
| Y-axis taug kev (mm) | 500 | 600 | 650 | 650 | 700 | 800 |
| Z-axis taug kev (mm) | 550 | 600 | 650 | 650 | 750 | 700 |
| T-qhov | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-130 | 5-22-135 |
| Qhov deb ntawm spindle center rau Z-axis qhia nto (mm) | 575 | 650 | 710 | 710 | 713 | 855 |
| Qhov deb ntawm spindle kawg lub ntsej muag rau worktable nto (mm) | 100-650 | 120-720 | 120-720 | 120-770 | 120-870 | 160-860 |
| Spindle taper qhov | BT 40-150 | BT 40-150 | BT 40-150 | BT 40-150 | BT 40-150 | BT 50-155 |
| Spindle ceev (r / min) | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 |
| X / Y / Z nrawm nrawm (m / min) | 18/18/18 | 36/36/24 | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/18 |
| Tshuab hnyav (Kg) | 5500 | 6500 | 6800 | 7000 | 8000 | 12000 |
Kev ua tau zoo
